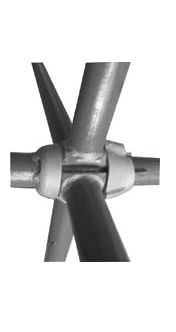

Cuplock / Cup lock is a unique node point connection allows up to four horizontal members to be connected to a veritical members in one single action - without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make 'cuplock/Cuplock' a fast, versatile and optimized system of scaffolding for construction, and maintenance projects


Silent Features:

  • Cuplock system - Easy to STAND - say no to  nuts and bolts or wedges
    Just a simple locking cup at each node point on the standards enables connection of the ends of up to four members in one locking action.
  • Cuplock systems- Versatile!
    Best suitable for access or formwork support.
  • Cuplock systems- Timely tested and Proven design with safe accessories
    Cuplock System has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies.
  • Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid.
  • Quick/Fast/Solid erection and dismantling results in time and labour saving.
  • Widely and Versatile use in construction and maintenance projects for any type of structure i.e. straight or curved.
  • Lightweight but high loads carrying capacity.
  • Low maintenance.

Various Cuplock Systems manufactured by Build Scaff are as follow






Image description

size



3.0 M



2.5 M



2.0 M



1.5 M



1.0 M



0.5 M

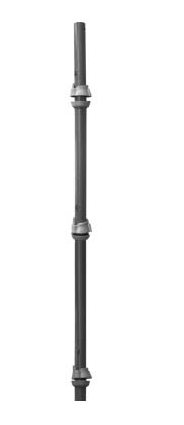

Cuplock spigotted standards are manufactured from 48.3mm O.D. tube. They have cup joints at 500mm intervals. The captive mobile top cups are designed to endure rough site handling and welded bottom cups are made from high-quality steel. Integral spigots are provided at the top of each standard for making vertical connections. The spigots and the base of each standard incorporate 11 mm dia. holes to enable use of locking pins to join standards one over other

.
Image description

Ledger / Horizontal Cuplock - Ledger / Horizontal

size



2.50 M



2.00 M



1.80 M



1.50 M



1.30 M



1.25 M



1.20 M



1.00 M



0.915 M



0.90 M







The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.



Image description

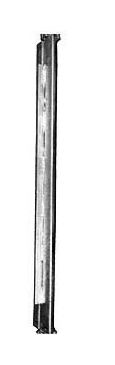

Cuplock Transom

Transoms are fabricated from twin structural angles fixed back to back with a drop forged blade attached to each end. The 1.8m and above Transom has an additional web member welded below the flange section for added strength. The transom blade locates into a bottom cup and is locked in position by the top cup. The outward standing bottom leg of the angles supports the steel planks in a captive manner. Available in various lengths to suit scaffolding and formwork applications.


Image description

Cuplock Omega Transom

Omega Transoms manufactured from press bent section with flange type extensions on both sides provides a strong support for working platform with Cuplock steel battens.


Image description

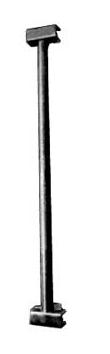

Cuplock Intermediate

For use where distance between standards exceeds the span of scaffold boards Cuplock intermediate transoms Available in various lengths.


Image description

Cuplock Inside Board Transom

Similar to intermediate transoms, inside board transom is used for providing facility for a single inside board platform.


Image description

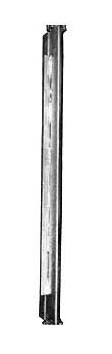

Cuplock Return

The Return Transom is used at the end of a scaffold run where it meets another scaffold running at right angles to it. The U-shaped return section of the transom hooks over the ledger of the adjacent scaffold, closing off the gap between the two scaffold.


Image description

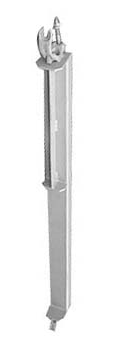

Ladder Access

The Ladder Access Transom is used to provide an opening in a bay allowing a ladder to pass through it. The L.A. Transom is attached to and spans between the ledgers in the bay.


Image description

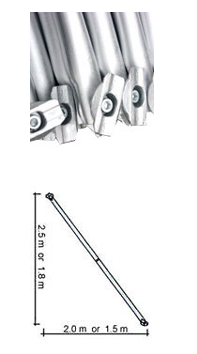

Cuplock Swivel Face brace

For diagonal bracing of scaffolding a range of longitudinal braces made with swivel forged blades at either ends to be fitted into cups of Cuplock standards are available.



Image description

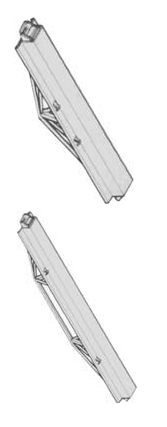

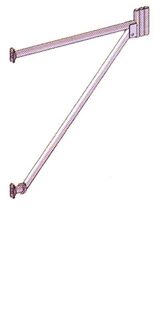

Cuplock Cantilever Frame

This item is used for providing support to decking or formwork at edges. This frame has ledger blades to be fitted into cups of Cuplock standards at one end and with provision for accepting jacks in three positions at the other end at 1.5 m, 1.0 M from centerline of the standard.



Image description

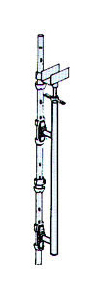

Beam Brackets

It is fixed on the main vertical supporting beams and can avoid separate vertical for supports of slab form work.







Image description

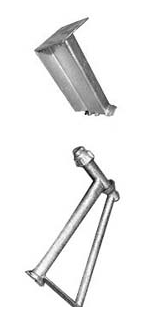

Hop-Up 1/2/3 Bracket

Hop-up Brackets are designed in omega sections as well as in tubes sections for placing battens with provision of forged blades to be fitted with Cuplock standards by cup joint. Omega Hop-up brackets are available for single board, two board and 3 board allocations.


Image description

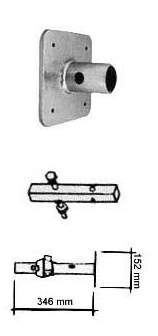

Socket Base And Universal Jack

Universal Jack
The Screw Jack provides a method of jacking which can be used at either the top or bottom of a scaffold structure. It is used in conjunction with Forkheads, Socket Base and Drophead Adaptors.




Socket Base
The Socket Base is used in conjunction with the Universal jack and is drilled to allow for the insertion of a securing bolt if required. The dimensions are as mentioned.

Loose Spigot
Made out of 300 mm long square /round tube 38 mm OD and with or without bolts. spigots are used for connecting verticals

Adaptor
The Drophead Adaptor units provide for the easy conversion of Dropheads from the Waffle and Trough or Metriform Support Systems for use with Cuplock.

We are one of the well-known manufacturers and exporters of Scaffolding Adjustable Props that are designed using quality raw material. These props are widely appreciated for their high load bearing capacity and light weight. Qualitatively superior, these are available in various types and lengths. Further, our high performing Scaffolding Adjustable Props are available at competitive prices, without any compromise on the quality.


Image description

Frame System
Our Scaffolds Frame systems has gained world wide acceptance. In addition to this, our reliable products are widely used by our esteemed clients in domestic market.
  • Our Frame system are Light Weight
  • Frame System are Dynamic, can be extended or joined with additional units
  • These Frame sets are Flexible, easy to install and dismantle
  • Aesthetic frame systems, due to decorative geometrical structural pattern
  • Frame systems Can achieve a wider roof span
  • Best Frame System because of Fast site installation, without any disturbances to other site jobs
·         Out Frame System Has higher safety factor

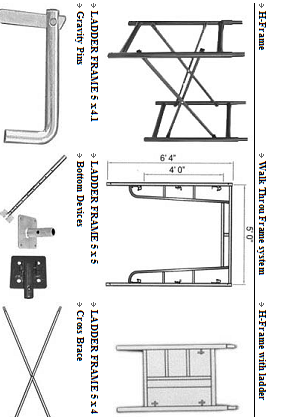

Various Frame Systems by Build Scaff are as follow
Image description






H-Frame, Walk Throu Frame system,  H-Frame with ladder, LADDER FRAME 5 x 4.1, LADDER FRAME 5 x 5, LADDER FRAME 5 , Gravity Pins, Bottom Devices, Cross Brace





Image description

Adjustable Steel Props
  • Adjustable Steel Props are designed to support a range of slab and beams shuttering.
  • Our Props are manufactured from an outer tube 60.3mm Dia and an inner tube of 48.3mm Dia and threads are provided on outer dia 60.3 mm in length of 275 mm.
  • Adjustable Steel Props are available in sizes No.0 to No. 4



Closed (m)

Open (m)

Prop No.0

1.00

1.75

Prop No.1

1.50

2.70

Prop No.2

2.00

3.25

Prop No.3

2.00

3.75

Prop No.4

3.00

4.65




Image description

Decking System

Provide an excellent means of supporting concrete slabs. Their rugged construction allows high load capacity, allowing the use of fewer shores. Saves you time and labor costs.

Various Decking System manufactured by Build Scaff are as follow

Adjustable Telescopic Span

Provide an excellent means of supporting concrete slabs. Their rugged construction allows high load capacity, allowing the use of fewer shores. Saves you time and labor costs.

Size

Range Min. m

Range Max. m

ESO + ESI

1.75

2.70

ESO + SI

2.38

3.40

SO + ESI

2.40

3.45

SO + SI

2.46

4.15

SO + LI

3.05

4.75

LO + SI

3.15

4.90

LO + LI

3.15

5.50








Image description

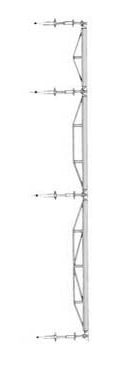

Metriforms Beams


Metriform beam and panel modules offer a choice of 12 supporting grids on props or Cuplok support scaffolding





Image description

Beams
The lightweight steel fabrication includes 100mm wide top flange which eliminates the necessity for a plywood infill, so cutting down maintenance costs. Heavy duty pressings are fitted to the beam ends ensuring adequate protection against site abuse. These incorporate a tongue location for the drophead.

Panel retaining lugs have a tapered wedge action for quick positive location of panels, ensuring tight joints and minimum grout loss. When beams are in the horizontal position they cannot be accidentally dislodged.

Cantilever Beams
Engineered to support normal access loads and stop-end forms; a safety device is incorporated locking the beam to the drophead so that they cannot be dislodged when striking. Provision is made for a guard-rail post to be attached using standard scaffold tube and fittings, thus eliminating the need for an external scaffold- a big saving in construction cost.

Sizes Available - 2.5M 1.8M 1.2M
Image description

Drophead Dropheads
  • The quick action Dropheads supplied complete with nuts and bolts is designed to fit on standard props or adaptors for Cup locks scaffolding. They allow panels and beams to be struck and re-used after only 3n or 4 days, leaving the support in position for the remainder of the curing period of the concrete slab.
  • The primary head remains in contact with the concrete whilst the secondary head and its supporting wedge are released by a single hammer blow. The height of the Dropheads is 214mm and the striking distance allows the beams and panels to drop only 115mm for the their safe removal a marked improvement in terms of speed and safety compared with other systems.
  • The Dropheads has a load carrying capacity of 40kN.
  • Special care has been taken to ensure that beams cannot be accidentally dislodged once located with the Dropheads primed.
Image description

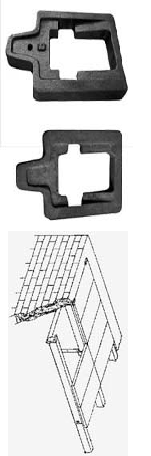

Wedge Plate Floor,  Forms/deck Panels/Coined Deck panels



All Kind of sizes are available.
 Made out of 2mm/2.5mm MS Sheet.

Slab Formwork







Image description

Form work

The Form work system consists of all steel economy panels. These are available in a combination of sizes from 75mm to 700mm wide and 900mm to 2500 mm long. Special sizes can also be made on order.

The panels are joined by wedge and lock sets which are inserted through slots in the punched angle / flat which forms the edge of the panel.

The panels are aligned by either tube or channel walers which are clamped to the panels with bridge and single clamps

For heavy duty concrete work soldiers are used. The panels are then gang formed and crane handled.

The panels are tied together to form parallel faces using tie bolt and tie rods

Various Form work manufactured by Build Scaff are as fol

Wall Form Economy
  • Economy panels are today's most advanced multi-purposed formwork system because:
  • Stiffeners are built into the panel, therefore only two scaffold tube or channel wafers are required for alignment.
  • Durable steel face plate cannot be damaged by vibrators or penetrated by the reinforcing steel.
  • Rapid assembly with wedge sets
  • Minimum champs required.
  • Can easily be erected by unskilled labour.
  • Accommodates any tie system


Image description









Wall form shuttering plate,  Purpose Made Formwork For Pier Cap


Channel Soldier

Wall forms and channel soldiers of 45*45*5mm are manufactured out of M.S slotted angles and 12g /10 g M.S sheets to make them rigid and strong. Curvature of wailing tubes are changed to suit profiles of different diameter shells.
Image description

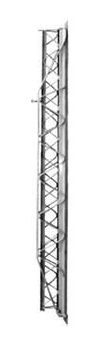

Heavy Duty Soldiers/Heavy Duty Soldiers/Heavy Duty Soldiers

Image description

Conventional Wallform Shuttering

Consists of wallform panels made out of 12 gauge /10 gauge Sheet and M.S. Angel/Flat Frame, channel/ Heavy Duty Soldiers, Tubular/Channel walers & accessories. Panels supplied in 1.25m & Soldiers in 2.5m heights. For curved walls flexible panes are used, and heavy duty soldiers to be used in place of channel soldiers for single sided shuttering.

Double Adjuster Panel, Splay Panel, inter Corner Panel, External Corner Angle and Lap Angle etc., as also wallform accessories like Single clip, Double clip, Bridge clip, Assembly bolt and wedge / clip etc. are used for various applications of conventional wallform shuttering.
Image description

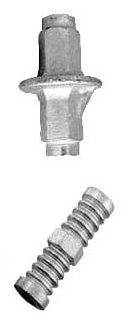

Water Stopper - With Disc/Without Disc

water stopper is compatible with 16mm tie rods, for achieving water tight ties.Water stoppers are made from high quality casting and have a plastic caps at both ends, special feature is an additional surrounding disc for better Anchoring and further security against penetrating water.




Image description










INTERNAL CORNER PANEL (ICP)/FILLER PLATE


ICP's come in a full range of lengths forming internal corner between a drop beam and slab soffit as well as vertical corers.
Filler plates fill in gaps when using non-standard modules and facilitate stripping in confined areas.





Rapid clamp are used with mild steel rods and provide a cheap, effective clamping system that has no nuts or bolts and leaves no expensive ties in the concrete. Available in blue painted, galvanized or rough finish. The wedge of the clamp is available with heat treatment also for long life.













Image description

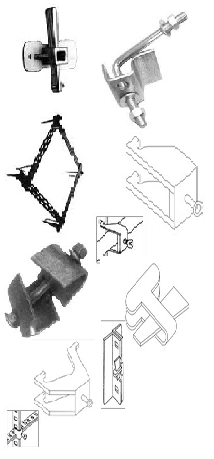

Rapid Clamps/wedge clamps/Column clamps/Timber Waling Clamp/Universal Clamp/Single Clamps /B - Clamps

/Double Clamps / C- Clamps/Wedge Sets

Image description

Steel Board /Battens

Galvanized steel scaffolding Boards and battens are lightweight non-slip working surface, which can be used with omega transoms. We are one of the dominant manufactures and suppliers of Scaffolds-steel Board. We use all modern techniques in the manufacturing of our world class products. We proffer unique and unparalleled products at acceptable price.


Image description



Galvanized Steel Boards






  Galvanized Steel Batterns






    Steel Board/Hook Boards




Image description

Coupler & Fittings

Our Coupler and  fittings like pressed double coupler, pressed swivel coupler are manufactured by a modern rapid production system. The materials employed are principally mild steels/Forged Steels, and fittings have been tested and conform to the BS - 1139. The fittings are tested to resist corrosion having a complete zinc coating with chromate passivation.
Additionally, all scaffold fittings are supplied with fully captive nuts. We operate a rigorous quality assurance policy.

Various Coupler & Fittings manufactured by Build Scaff are as follow



Pressed Double Coupler
  • Pressed Double Coupler
    Pressed Double Couplers connect two scaffold tubes at right angles. These are critical components in the scaffold structure and must be load bearing to resist both slip and distortion. The design is based on a strong one piece body with flaps and eye-bolts that can be removed for maintenance or replacement.

  • Pressed Swivel Coupler
    Pressed Swivel Couplers connect two scaffold tubes at any angle to provide a ledger brace, facade, or similar bracing.





Sleeve Coupler

Sleeve Couplers join two scaffold tubes externally end to end. A steel divider located centrally ensures equal insertion of each tube. They can be employed where tension joints are required and therefore are particularly useful for long bracing.







Putlog

Connects putlog tubes to ledger tubes for the support of scaffold boards. The one piece body has been carefully designed and press-formed to provide the maximum resistance to movement and a long working life. It is not required to be a load bearing coupler.








Image description

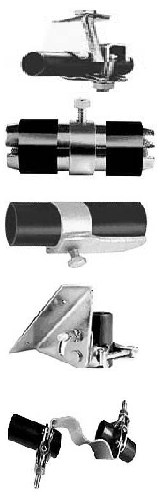

Girder Coupler

There is often a requirement to fasten scaffold tubes to girders and other steel sections which demands a specialized fitting with a high degree of versatility.

In erection, the Gravlock Coupler is highly effective, as it enables the fitting to be bolted to the girder first, leaving both hands free to present and secure the tube. As the tube is not compressed against the girder it is not distored by the fastening process. Gravolock couplers must be used in pairs.







Joint Pin

Joint Pin-Provides end to end connection of scaffold tubes. Operates by being inserted internally and expands to apply grip against the inner walls of the tubes. The fittings are designed only for compression joints, and should not be used where tension can be developed in the tubes.







Putlog Head Adopter

Putlog Head Adopter -Used to convert a scaffold tube into a putlog, making the maximum use of short lengths of tube.







Stair Case Coupler

Stair Case Coupler - Used for the construction of temporary stairways by connecting together scaffold tubes and timbers (often scaffold boards) with angles ranging from 28° to 90°. These units can be used either left of right handed.







Roofing Coupler

Roofing Coupler - Designed for securing corrugated sheets to scaffold tube without the need for holes.







Image description

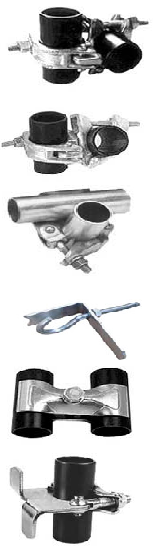

Drop Forged Coupler
We are supplying drop forged fittings for many years, and they have proved to be highly popular in producing the important combination of strength and robustness. Our double couplers in particular include the strongest fitting of its kind available, and our products are specified for the most onerous applications, (e.g. Civil Engineering) where the most reliable and robust products are required

Drop Forged Double Coupler

Connects two scaffold tubes at right angles. These are important load bearing components, and the drop forged fittings provide the maximum strength. We provide a heavy duty and a medium duty version for maximum economy which complies with the standard.







Drop Forged Swivel Coupler

The function of the swivel coupler is to connect two scaffold tubes at any angle for ledger, facade or similar bracing. These are important structural components and must be load-bearing. We provide alternative models to compliment the double couplers.







Drop Forged Putlog Coupler

To complement the use of drop-forged double couplers a putlog coupler is also supplied. This is used to fasten putlogs to ledgers. The flap is manufactured from a high quality steel drop-forging.







Toe Board Clamp



Fencing Coupler

Toe Board Coupler









Image description

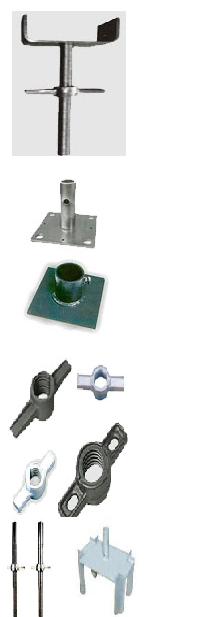

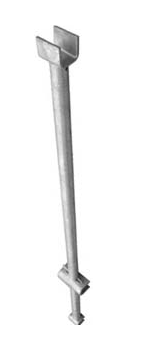

ADJUSTABLE BASE JACK
 Adjustable base jack has a solid steel stem/Hollow Tube Stem of 32/36/38mm diameter which has a nut restraint to ensure the stem always has a minimum engagement into the Standard of 150mm. The Adjustable base jack is capable of accepting twin 100mm. wide bearers.


Adjustable-U-Head Jack/ Base Plate / FIXED BASE PLATE/ Jack Nuts / Threaded Jack nuts
